Porduct Overview

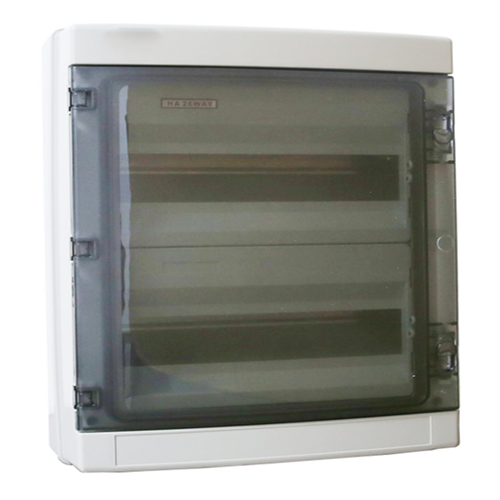

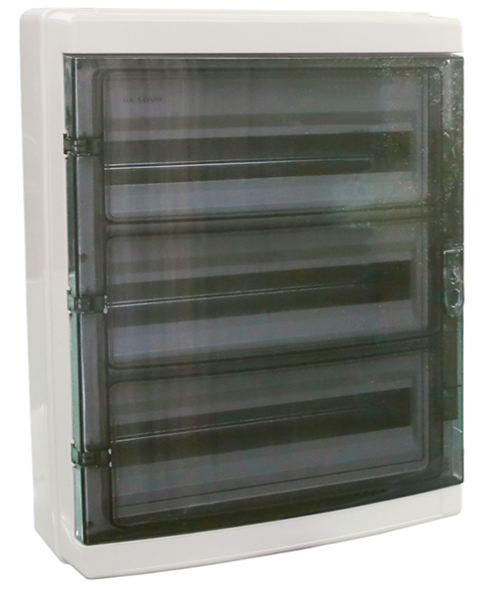

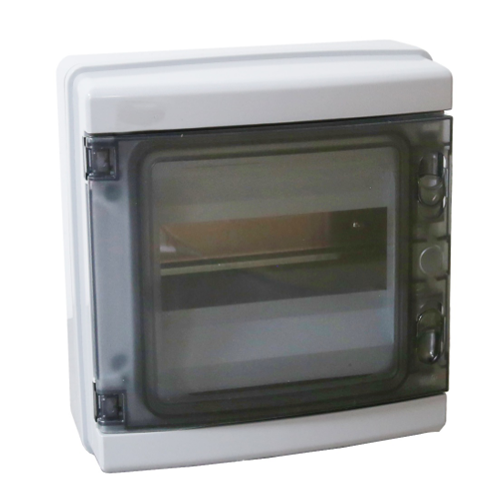

D-BOX Surface wall mounting AC Box Enclosure has two models: With Neutral Terminal, Without Neutral Terminal.

Structure and Feature

1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which makes the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 18way, 24way.

4. EKDB4 Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 240V/415V, and acted to install the modular combination equipment.

5. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occasions.

6. The plastic unit of the modular distribution boxes/distribution boards adopt ABS+PC material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

7. This distribution boxes/boards enclosure confirm to standard IEC62208.

Technical parameters

Technical Data

1.Without Neutral Terminal Model

2.With Neutral Terminal Model

Dimensions
