TSM Distribution Box

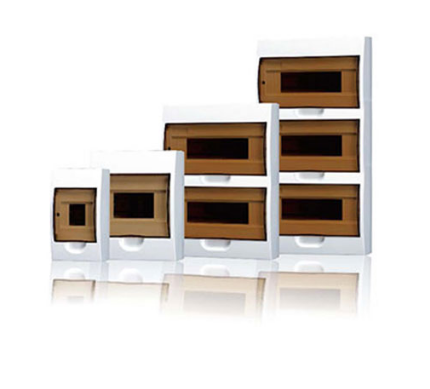

TSM Series Plastic Distribution Box
The Distribution Box is used for Terminal power distributing system; The Distribution Box are completed with Din-rail 35mm and Neutral Terminal; Electrical Rating: 100A/single phase,63A/three phase,240/415V AC 50/60Hz
Description
Package Information
Inquiry
Porduct Overview
| Electrical Rating | 100A/single phase,63A/three phase,240/415V AC 50/60Hz |
| Protection Degree | IP40 |
| Material | Shell: ABS, ABS-UV Fire-proof |
| Door: Transparent PC | |
| Method of Installation | Surface-Mounted and Flush-Mounted |
Technical parameters
Technical Data
1. General Type-Full Plastic
1.1 Surface-Mounted type
Model No. | Ways | Dimension(mm) | Specification of N terminal | ||||
ABS | L | W | H | W*H | Screw Qty | Bar Qty | |
TSM-S2 | 2 | 49 | 130 | 85 | |||
TSM-S3 | 3 | 94 | 148 | 85 | |||
TSM-S4 | 4 | 111 | 200 | 93 | 6*8 | 4 | 1 |
TSM-S6 | 6 | 148 | 200 | 97 | 6*8 | 6 | 2 |
TSM-S8 | 8 | 184 | 200 | 96 | 6*8 | 8 | 2 |
TSM-S10 | 10 | 220 | 200 | 92 | 6*8 | 10 | 2 |
TSM-S12 | 12 | 254 | 200 | 96 | 6*8 | 12 | 2 |
TSM-S15 | 15 | 310 | 200 | 97 | 6*8 | 15 | 2 |
EKDB2S18 | 18 | 362 | 219 | 97 | 6*8 | 18 | 3 |
TSM-S24 | 24 (2x12) | 271 | 324 | 98 | 6*8 | 24 | 4 |
TSM-S36 | 36 (2x18) | 269 | 457 | 100 | 6*8 | 36 | 6 |
1.2 Flush-Mounted type
Model No. | Ways | Dimension(mm) | Specification of N terminal | |||||
ABS | L | W | H1 | H2 | W*H | Screw Qty | Bar Qty | |
TSM-F2 | 2 | 66 | 137 | 85 | 25 | |||
TSM-F3 | 3 | 94 | 148 | 85 | 26 | |||
TSM-F4 | 4 | 135 | 221 | 87 | 26 | 6*8 | 4 | 1 |
TSM-F6 | 6 | 171 | 221 | 88 | 26 | 6*8 | 6 | 2 |
TSM-F8 | 8 | 208 | 221 | 87 | 26 | 6*8 | 8 | 2 |
TSM-F10 | 10 | 244 | 221 | 86 | 26 | 6*8 | 10 | 2 |
TSM-F12 | 12 | 280 | 221 | 88 | 24 | 6*8 | 12 | 2 |
TSM-F15 | 15 | 334 | 221 | 89 | 29 | 6*8 | 15 | 2 |
TSM-F18 | 18 | 399 | 252 | 86 | 27 | 6*8 | 18 | 3 |
TSM-F24 | 24 (2x12) | 300 | 341 | 98 | 31 | 6*8 | 24 | 4 |
TSM-F36 | 36 (2x18) | 300 | 480 | 98 | 31 | 6*8 | 36 | 6 |
Dimensions
