S7 Circuit Breaker has the characteristics of advanced structure, reliable performance, high breaking capacity(6kA) and beautiful appearance. It is mainly used for AC 50Hz or 60Hz, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.
Description
Package Information
Inquiry

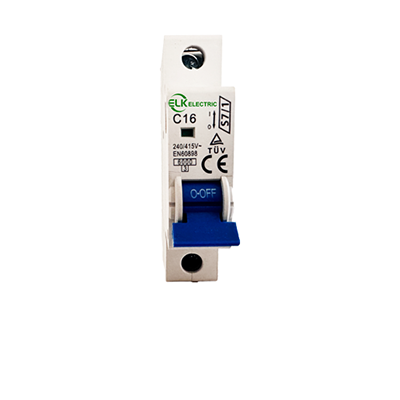

MCB 6kA 63A Miniature circuit breaker
The S7 Circuit Breaker is a versatile and reliable device designed to protect electrical circuits from overloads and short circuits. It features an advanced structure, high breaking capacity, and a visually appealing design, making it suitable for a wide range of applications.
● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 1~63A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P,2P,3P,4P,1P+N,3P+N
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CB, CE, TUV, Semko
Technical parameters
Technical Data
| Standard | IEC/EN60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |
| Rated Current In | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Poles | 1P, 1P+N, 2P, 3P, 3P+N,4P |
| Rated voltage Ue | 240/415V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Energy limiting class | 3 |
| Rated impulse withstand voltage (1.2/50) Uimp | 4,000V |
| Dielectric test voltage at ind. Freq. for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature (with daily average≤35℃) | -5℃~+40℃, Max.95%humidity |
| Terminal connection type | Cable/Pin-type busbar/Fork-type busbar |
| Terminal connection type | 25mm2 |
| Max. Tightening torque | 2.5N.m |
| Mounting | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
