Residual Current Circuit Breaker (RCCB) K7

Porduct Overview The K7 solving the problem of RCCB high current specifications is an important supplement to leakage protection products with working current less than or equal to 63A. This move not only improves the performance of leakage protection equipment, but also expands its application range, enabling it to better meet the safety needs of various electrical equipment and systems. By adding support for large current specifications, the K7 RCCB product can more effectively cope with high-load current environments, ensuring that reliable leakage protection can still be provided when the current exceeds the conventional specifications. This not only improves the safety of electrical systems, but also provides users with more choices and flexibility, allowing leakage protection equipment to play its due role in various industrial and civil occasions. Choose the K7 for uncompromising, efficient residual current protection that meets and exceeds the requirements of modern, high-power electrical systems. Trust ETEK Electric to deliver the reliability, performance, and safety your industrial-grade electrical installations demand.
Description Package Information Inquiry

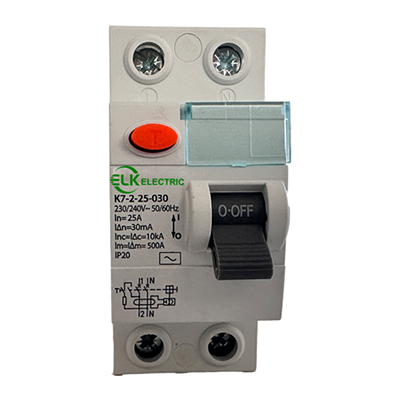

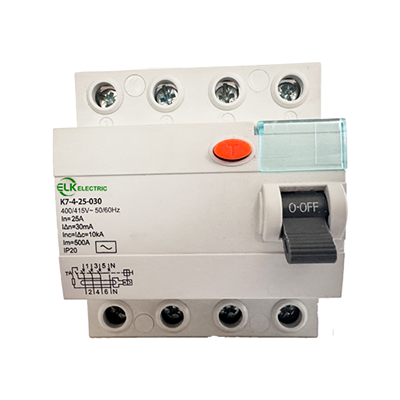

High-Performance Residual Current Circuit Breaker (RCCB)

K7 RCCB (Residual Current Circuit Breaker) is a high-performance leakage protection device designed for applications with higher currents.

● Standard: IEC61008-1
● Type: AC, A
● Rated current: 80~125A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on right
● Rated sensitivity I△n: 30mA, 100 mA, 300mA
● Rated short-circuit breaking capacity: 10kA
● Ambient air temperature: -25...+55 ºC
● Connection: From top and bottom

Technical parameters

Technical Data

Standard

IEC/EN61008-1

Protection

Ground fault

Type of trip

Electro-magnetic

Type of protection (electric leakage)

AC, A, G, S

No. of poles

2P(1P+N), 4P(3P+N), N Pole on right

Rated current In80, 100, 125A

Rated sensitivity currents I△n

30,100,300mA

Residual current off-time under I△n

≤0.1s

Rated residual making and breaking capacity(I△m)

10In (In>50A)

Rated voltage Ue

1P+N: 230/240V~, 3P+N: 400/415V~

Rated frequency50/60Hz

Rated breaking capacity

K6: 6,000A, K7: 10,000A

SCPD fuse

K6=6kA, K7=10kA
Rated impulse withstands voltage (1.5/50) Uimp4000V
Dielectric test voltage at ind. Freq. for 1min2kV
Electrical life2,000 Cycles
Mechanical life4,000 Cycles
Contact position indicatorYes
Protection degreeIP20
Ambient temperature

-25℃ to +55℃, Max.95% humidity

Terminal connection type

Cable/Pin-type busbar/Fork-type busbar

Max. terminal size for cable

50mm2

Max. tightening torque

2.5N.m

Installation

Mounting on 35mm DIN rail

Connection

From top and bottom

Dimensions

Circuit Diagram

etek rccb ekl1-125h circuit diagram

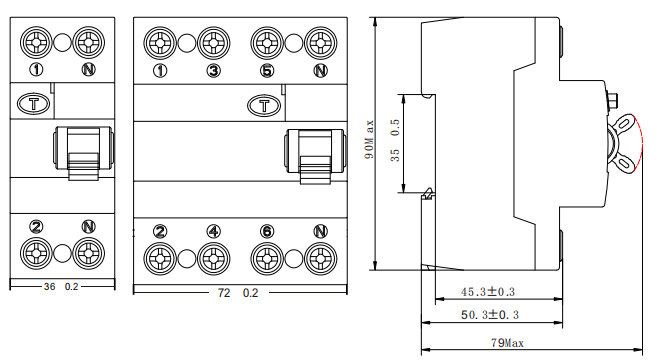

Installation size

rccb ekl1-125h size
